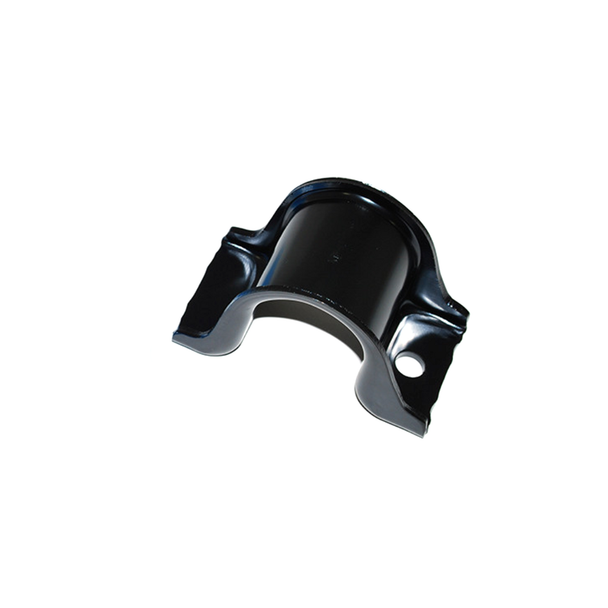

Anti Roll Bar Bush Mounting Bracket for Discovery 2 | RBU100240

Anti Roll Bar Strap Bracket

JGS4x4 can supply all the engine and transmission parts you need, such as bearings, pistons & rings, valves, guides, gaskets, belts, chains, bolts, and more from top brands like Payen, AE, BGA, Elring, AMC, ZF, Garret, Denso and many other OEM brands. So if you are repairing or rebuilding a Land Rover engine, check out our extensive range of engine, gearbox and axle parts.

EQUIVALENT TO PART NUMBER(S): RBU100240

The RBU100240 anti-roll bar bush mounting bracket secures the anti-roll bar bush to the axle on Land Rover Discovery 2 models. Although the anti-roll bar bush size varies depending on whether the vehicle is fitted with Active Cornering Enhancement (ACE) and/or rear air suspension, this mounting bracket is common across the applications listed below.

Corrosion, impact damage or seized fixings can make the original bracket difficult to reuse during suspension repairs. Replacing the bracket ensures the anti-roll bar bush is securely clamped in place, helping maintain correct suspension performance and minimise unwanted movement or knocking.

KEY FEATURES

• Anti-roll bar bush mounting bracket
• Direct replacement for the original bracket
• Manufactured to original equipment specifications
• Suitable for multiple Discovery 2 anti-roll bar applications
• Heavy-duty steel construction
• Secures the anti-roll bar bush to the axle

WHY REPLACE / BENEFITS

• Replaces corroded or damaged original brackets
• Provides secure clamping of the anti-roll bar bush
• Helps prevent bush movement and suspension knocks
• Ideal when replacing worn anti-roll bar bushes
• Restores proper anti-roll bar mounting

PART DETAILS

• Part number: RBU100240
• Part type: Anti-roll bar bush mounting bracket
• Material: Steel
• Position: Front anti-roll bar and rear anti-roll bar (ACE models)
• Quantity supplied: 1 bracket

SUITABLE FOR THE FOLLOWING LAND ROVER MODELS

• Discovery 2 L318, 1998-2004, front anti-roll bar (all models)
• Discovery 2 L318, 1998-2004, rear anti-roll bar on ACE-equipped models
• Suitable for vehicles with or without rear air suspension where applicable

NOTES

• This bracket is common to all listed applications.
• The anti-roll bar bush itself varies depending on anti-roll bar diameter, which differs between ACE and non-ACE vehicles and some suspension specifications.
• Rear non-ACE vehicles use a different style of anti-roll bar mounting arrangement.
• Supplied as one bracket. Order two if replacing both brackets on one anti-roll bar.
• Please check compatibility before ordering if you are unsure.

If you're replacing worn anti-roll bar bushes or refurbishing your Discovery 2 suspension, the RBU100240 mounting bracket provides a secure, original specification fixing for the anti-roll bar bush. Replacing corroded brackets at the same time as the bushes helps ensure a long-lasting repair. Buy from JGS4x4 for fast UK delivery.
