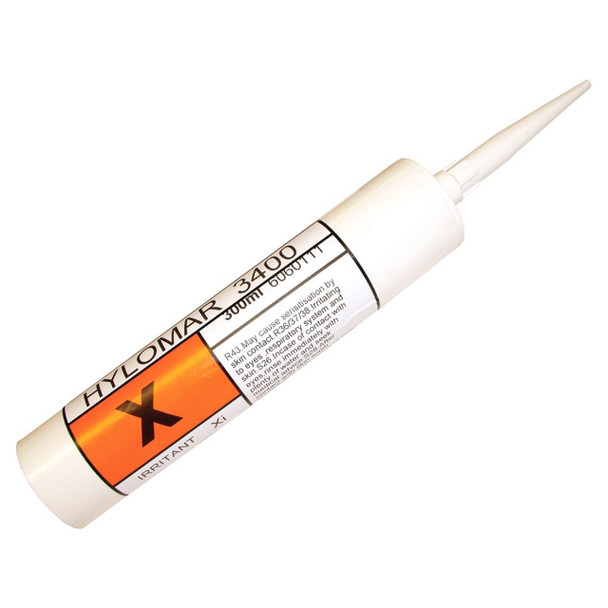

3400 Anaerobic Gasket Compound 300ml Hylomar

Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) Gasket when cured. The cured compound has good temperature resistance and high resistance to fretting. The cure is initiated when the compound is in contact with metal ions and in anaerobic conditions.

The cure rate and final strength is dependent on the metals being joined and the temperature at which the component is used. The heat generated by a running engine will accelerate the cure.

Instructions for Use:

Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.

Applications:

• Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces.
• It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.

Features:

• Excellent resistance to automotive fluids including fuels
• Operating temperature -40°C to 150°C
• Machined metal to metal surface only, not suitable for pressed steel
• No gap filling
• Latest generation anaerobic gasket compound
• Single part product
• Suitable for K-series engines
• Ensure surfaces are free of oil and grease

Specifications:

• Product Type: Anaerobic Gasket Compound
• Volume (ml): 300

Technical File:

Technical Data Sheet

Safety Data Sheet
