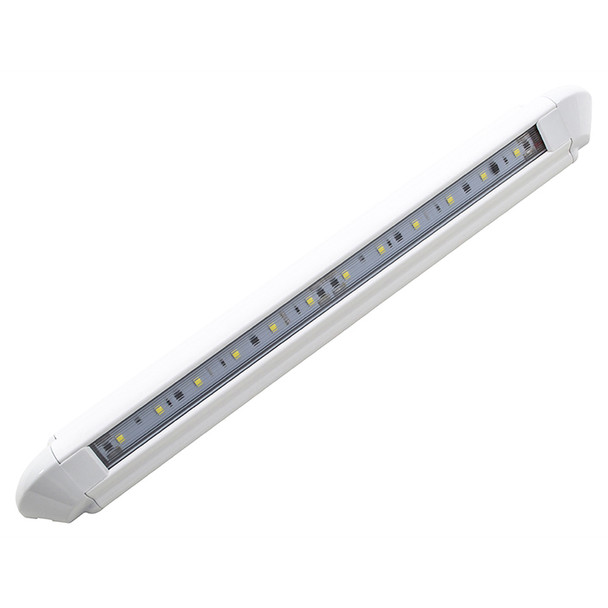

Astro 12V Led Strip Light - DA1446

Long Life, High Intensity Cree LEDs

The Astro gives a wide spread of light perfectly angled for awning and area lighting. The lights incorporates the Orizon LED strip light which uses the latest in LED technology offering optimum performance and extended life. The properties of these LED give greater luminosity, allowing for a brighter unit whilst using fewer LED to maintain the low power draw.

Wide Spread of Light

The Astro is approximately twice as long as a standard awning light thereby increasing the spread of light along the side of a vehicle offering greater external illumination. The angled wash of light to the floor also makes it a perfect light source to illuminate work areas, shelving, lockers and much more.

Quick to Install, Compact Design

The LED strip sits within a slim aluminium housing which conceals the fixings and with ABS Snap-on end caps, this compact light unit is quick and easy to install.

Waterproof To IP66

The PCB driver, components and LED are completely encased within a polycarbonate extrusion, which protects against moisture ingress.

Features:

• Angled light source
• Compact design
• E-type approved

Specifications:

• Product Type: Astro Strip Light
• Light Colour: White
• LED Length (mm): 250
• Voltage Range (V): 10-14
• Average Current (A): 0.24
• Light Output (lm): 320
• Wattage (W): 3
• Temperature Range: -30°C to +40°C
• IP Rating: IP66
• Dimensions (mm): L 343 x W 43 x H 31

Technical File:

Specification Sheet
