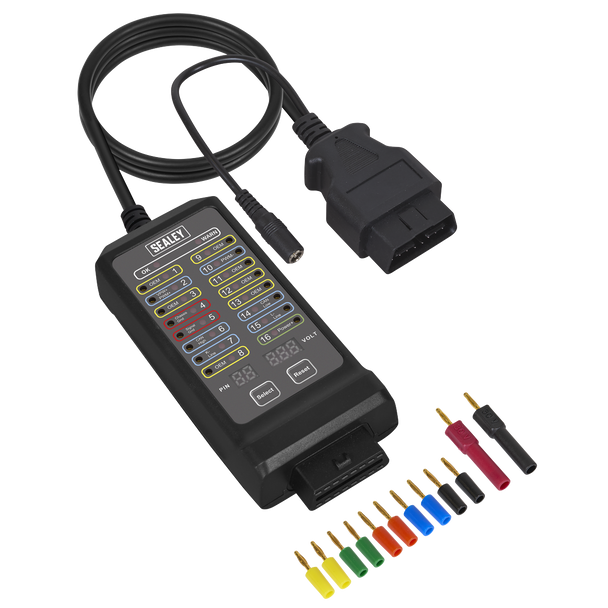

OBD Breakout Box 16-Pin 12V/24V
- SKU:
- VS8813
- UPC:
- 5054630471650
- Brand:
- Sealey
- Condition:
- New
- Availability:
- ALLOW 1-2 DAYS EXTRA SUBJECT TO AVAILABILITY
- Weight:
- 0.35 KGS
Description
Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.
Test the on-board diagnostics port for any faults before connecting other diagnostic devices to the DLC.
Designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
Can also be connected to multimeters and oscilloscopes.
Compatible with 12 and 24V systems.
Selectable pin voltage indicator shows the real-time voltage of the selected pin.
Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
Overload protection protects any connected diagnostic equipment from damage.
Model No. VS8813
View AllClose
Test the on-board diagnostics port for any faults before connecting other diagnostic devices to the DLC.
Designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
Can also be connected to multimeters and oscilloscopes.
Compatible with 12 and 24V systems.
Selectable pin voltage indicator shows the real-time voltage of the selected pin.
Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
Overload protection protects any connected diagnostic equipment from damage.
Model No. VS8813
Warranty Information
12 MONTHS - This product is covered by the manufacturer's standard 12 month warranty against material defects and workmanship.
View AllClose
