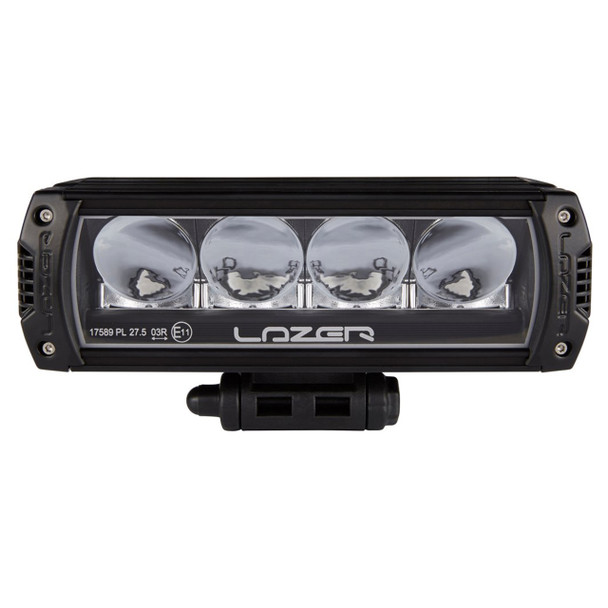

Single Triple-R 4 LED Light Lazer
- SKU:
- DA1690
- UPC:
- DA1690
- Brand:
- LAZER
- Condition:
- New
- Availability:
- ALLOW 1-2 DAYS EXTRA SUBJECT TO AVAILABILITY
- Weight:
- 0.78 KGS
Description
The Lazer Triple-R 4 offers incredible performance from a compact and great value unit. Utilising the same Boost optics as the other lights in the Triple-R range, it's unique styling and E-mark approval mean it is perfect for road, rally and race applications.
With over 5x the peak intensity of the hybrid beam pattern achieved by the equivalent ST4 /RS4 lights, the Triple-R 750 delivers a long range LED lighting solution perfect for everyday use. Designed around the requirements of the track and rally racing sectors, and through an uncompromising commitment to using the best quality components and manufacturing processes, the Triple-R 750 delivers staggering performance for such a small unit.
Achieving 1 lux at 432m, the Triple-R 750 delivers on performance through a combination of the latest LED technology, vacuum metallised hooded reflectors (with 100% light utilisation), a CAE optimised heatsink, and electronic thermal management system which ensures light output is optimised at all times. Comprising a 'spot' beam pattern, the light achieves 17m 1lux spread at 225m. The unique styling of the Triple-R range alongside a fully aluminium enclosure, gore-tex breather membrane, and virtually unbreakable polycarbonate lens cover, means the Triple-R 750 will look good in even the toughest of environments.
Features:
- Ultra long range optics
- High output LED's from world leader in LED technology
- CAE optimised heatsink
- Electronic thermal management system
- Unbreakable polycarbonate lens
- Anodised aluminium heatsink provides for improved thermal dynamics
- IP67 Watertight
- Innovative design and unique styling
- Comes as standard with 70cm cable, including pre-wired male & female connectors
- Supplied mount can also be placed above the unit for top mounting
Specifications:
- Product Type: LED Light
- Voltage Range (V): 9/32
- LED Life (hrs): 50,000
- Optical Efficiency: 92%
- Dimensions (mm): W 230 x D 103 x H 73
High Beam Function:
- Total Luminous Flux (lm): 4100
- Number of High Output LEDs: 4
- Power Consumption (W): 45
- Current Draw (at 14.4V): 3.1 Amps
Photometric Data:
- 0.25 lx Line (m): 865
- 0.5 lx Line (m): 612
- 1 lx Line (m): 432
- 3 lx Line (m): 250
Kit Contents:
- 1 x Triple-R 750 LED Lamp
- 1 x Centre Mount (1114k)
- 1 x Wiring and Installation Instructions
Technical Files:
Warranty Information
If you’re unsure whether this part is right for your vehicle or specific requirements, we strongly recommend contacting us before placing your order — we’re happy to help you check compatibility. Please note that returned items may be subject to delivery cost deductions and a restocking fee of up to 15% of the item’s net price. Images are for illustration purposes only; actual brand, colour, or quantity may vary.
